Vacuum Pump CAT Model (Double Stage/Cone type)
Application Industry:
Paper, wood processing, packaging, petrochemical, printing, food, sugar, salt, beverage, textile, mining, mining, mining, plastics, chemical, power, pharmaceutical , environmental protection industry, medical equipment.
CAT SERIES · Single Stage Water Ring Vacuum Pump
CAT Series
Single Stage Water Ring Vacuum Pump

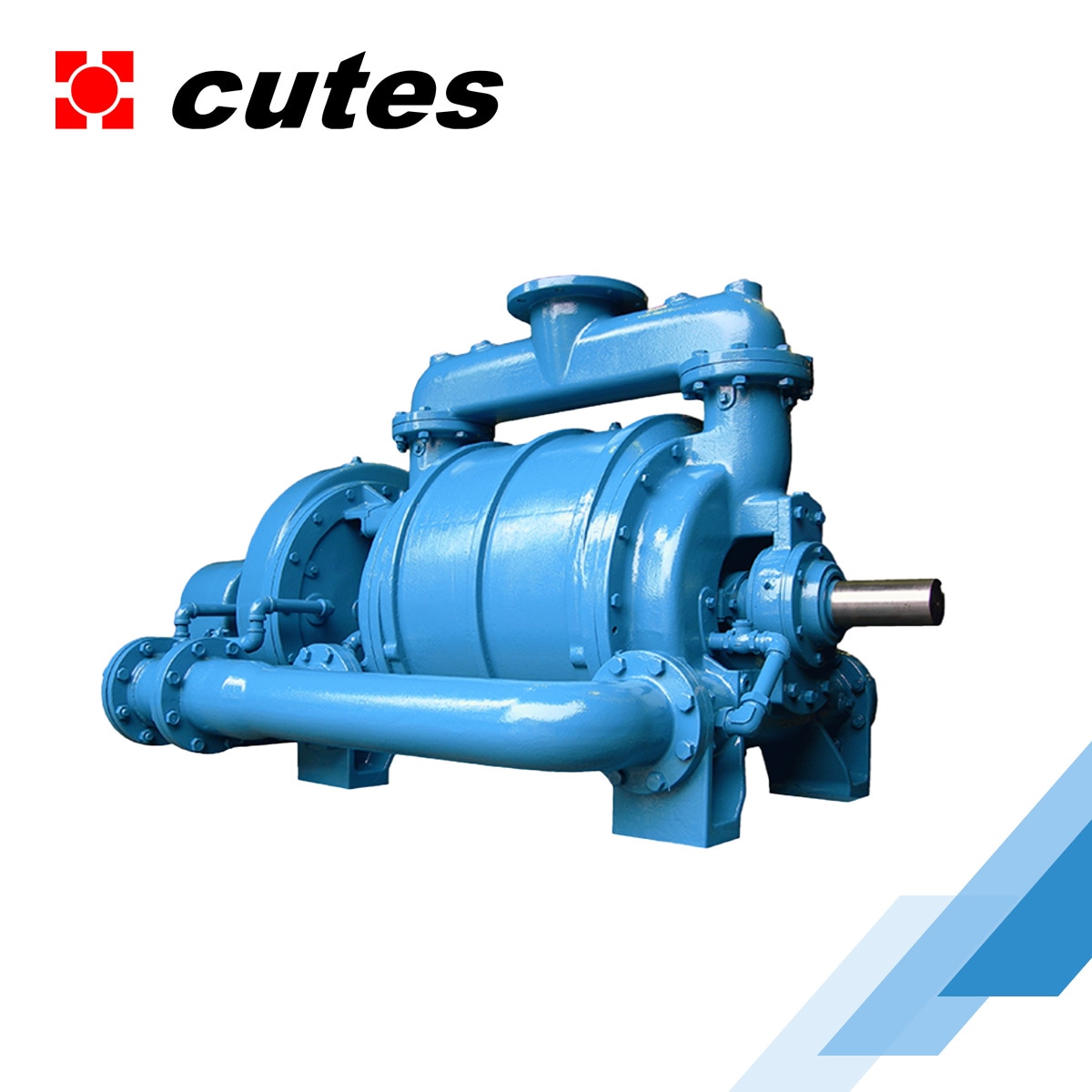

Professionally manufactured by Cutes, featuring a conical cones design. It provides an exhaust capacity ranging from 600 to 2,800 CFM, delivering a reliable and highly efficient vacuum source for diverse industrial applications.
Performance Range
CAT Operating Vacuum Range & Seal Options
Main Components of CAT Series
-
Rotor & Body
Includes the core Rotor and primary Body, establishing a solid operational foundation.
-
Bracket & Head
Equipped with load-bearing Brackets and robust DE Heads for enhanced structural integrity.
-
Cones
Utilizes a Conical cones design, effectively ensuring highly efficient gas operation and return.
-
Gasket & Shim
Ensures maximum airtightness via Gaskets and Shims, allowing for precise control of internal GAPs.
Capacity Range by Model
The CAT series encompasses three primary models to accommodate flow rate requirements from 600 to 2,800 CFM.
Superior Engineering Design
Engineered as a Double stages Liquid Ring Vacuum Pump with a Conical cones structure, offering excellent adaptability for demanding industrial environments.
Model Order Code Configuration
Material Construction Code
| Parts Name | FCD |
|---|---|
| Cones | FCD |
| Head | FC25 |
| Housing | FC25 |
| Lining | FC25 |
| Shaft / Cladding Plate | S45C |
| Bearing Bracket | FCD40 |
| Bearing Cap | FCD40 |
| Rotor | FCD40 |
* The table reflects the FCD material configuration. For full details and other options, please refer to the original manufacturer specification sheet.
CAT Series Dimensions Table
| MODEL | A | B | D | E | F | H | L | M | Piping |
|---|---|---|---|---|---|---|---|---|---|
| CAT-1006 | 667 | 351 | 38.1 | 632 | 708 | 116 | 305 | 419 | 6", 1", 1" |
| CAT-2006 | 1778 | 332 | 92.75 | 1044 | 1160 | 100 | 432 | 622 | 8", 5", 8" |
| CAT-3006 | 2515 | 362 | 101.6 | 1232 | 1344 | 200 | 533 | 711 | 10", 8", 1" |
* For dimension units, refer to the original specifications. For complete data including fields G, J, and K, please consult the official catalog.
Cutes Corporation
CAT-SERIES Feature Overview
Broad Capacity Range
The entire model lineup offers operational capacities from 600 to 2,800 CFM, effectively accommodating gas exhaust requirements across various industrial sectors.
Low Noise Design
Equipped with a silencer and inlet/outlet piping (at 200 Torr condition), operating noise is strictly controlled between 83-88 dB(A), significantly enhancing plant environmental quality.
Customizable Seals & Materials
Features versatile sealing options including Gland Packing and Single/Double Mechanical Seals (1M/2M), alongside standard FCD material configurations to withstand diverse process challenges.
產品目錄 -
液環真空幫浦 CAT 型
